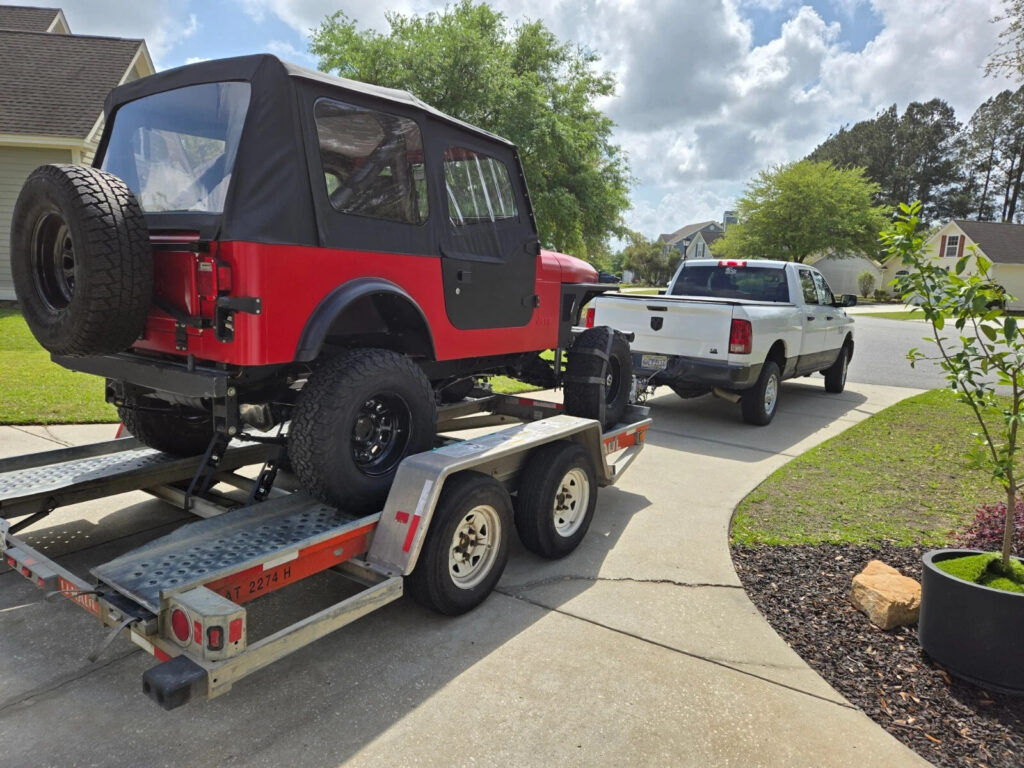

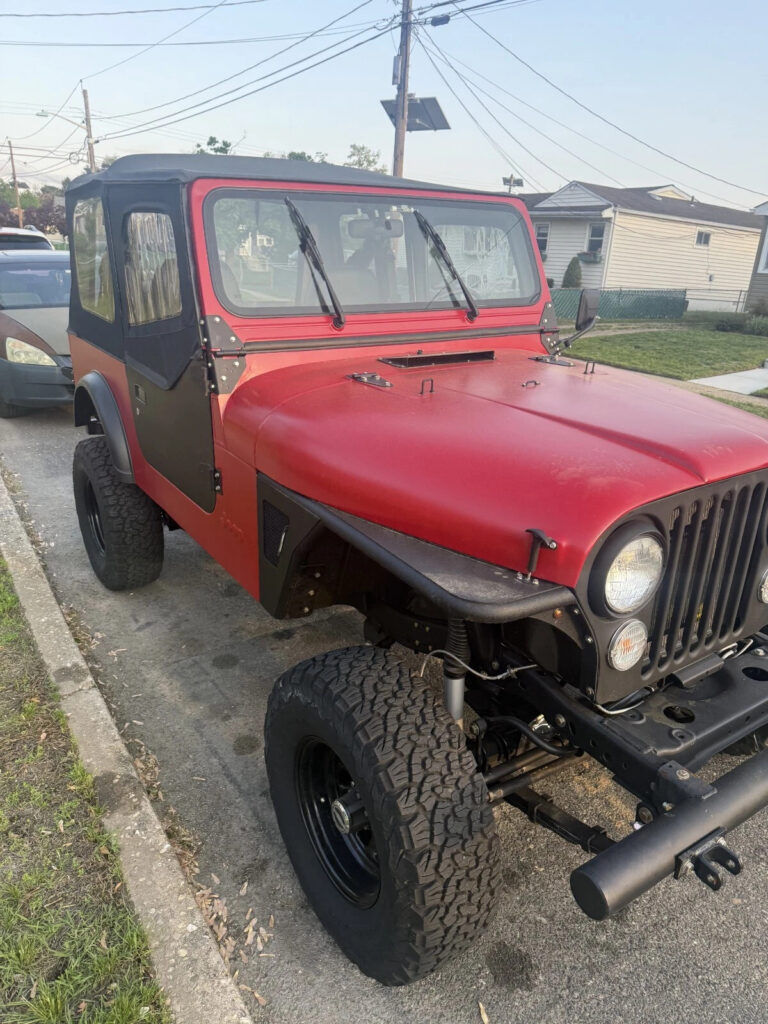

1986 CJ7 rebuild completed in 2025.
Driven frequently now. Starts right up. NO rust.
Any questions please ask.
More photos on request. Soon to have better side shots and odometer.
Built in GA and given to my son in NJ. Local inspect has to be scheduled.

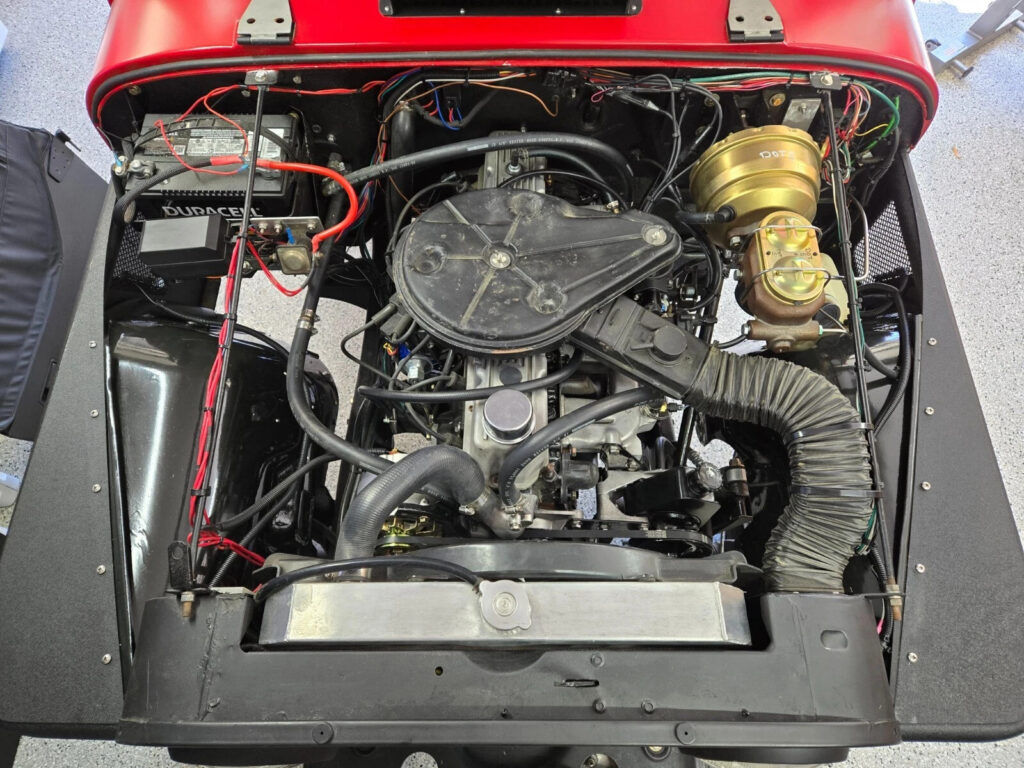

AMC 258 engine, has NOT made it through its brake in miles yet, rebuilt in 2024 bored 3 over, rebuilt head in 2024, engine has been painted with POR15, new Holley Sniper Fuel injection with in the tank pump, new HEI distributor and wires, aftermarket aluminum valve cover, new FlowCooler water pump, mechanical fan, Champion Aluminum radiator with original shroud, new motor mounts, new 15 gallon gas tank with POR15 outside and inside, new stainless steel and Evil Energy fuel lines, all pulleys and mounts sand blasted and painted with POR15, rebuilt emissions cannister, Mean Green starter, new Power Master Alternator, original offset air cleaner,
TF999/A999/32RH Transmission (per VIN it should have a 4 speed manual), trans cooler with new fittings and lines, new American Shifter shift kit, new 2in deep pan with drain plug, new transmission mount, reinforced “W” mount, included is a B&M floor shifter that has been reconditioned
Dana 300 transfer case complete rebuild in 2024, new speedometer cable
Dana 44 rear axle with 4.10 gears and TrakLoc, all new drum brakes and parts, new leaf perches welded on with new angle for lift, new outer bearings and seals

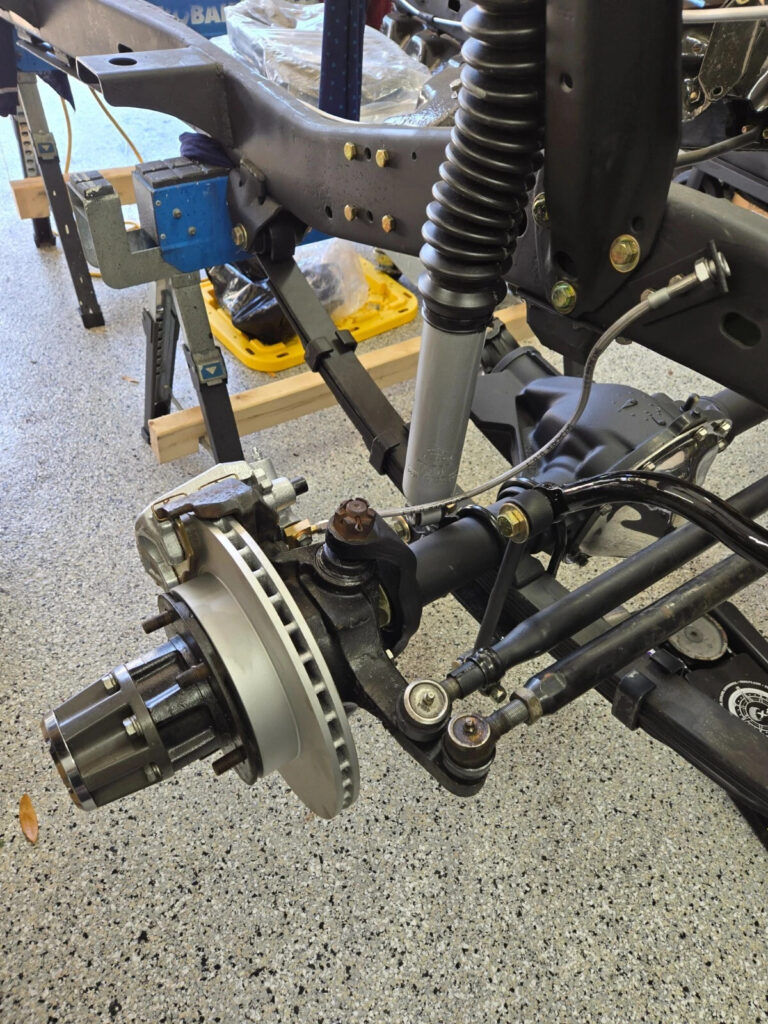

Dana 30 front axle with 4.10 gear, new disc brakes and rotors, new outer bearings and seals

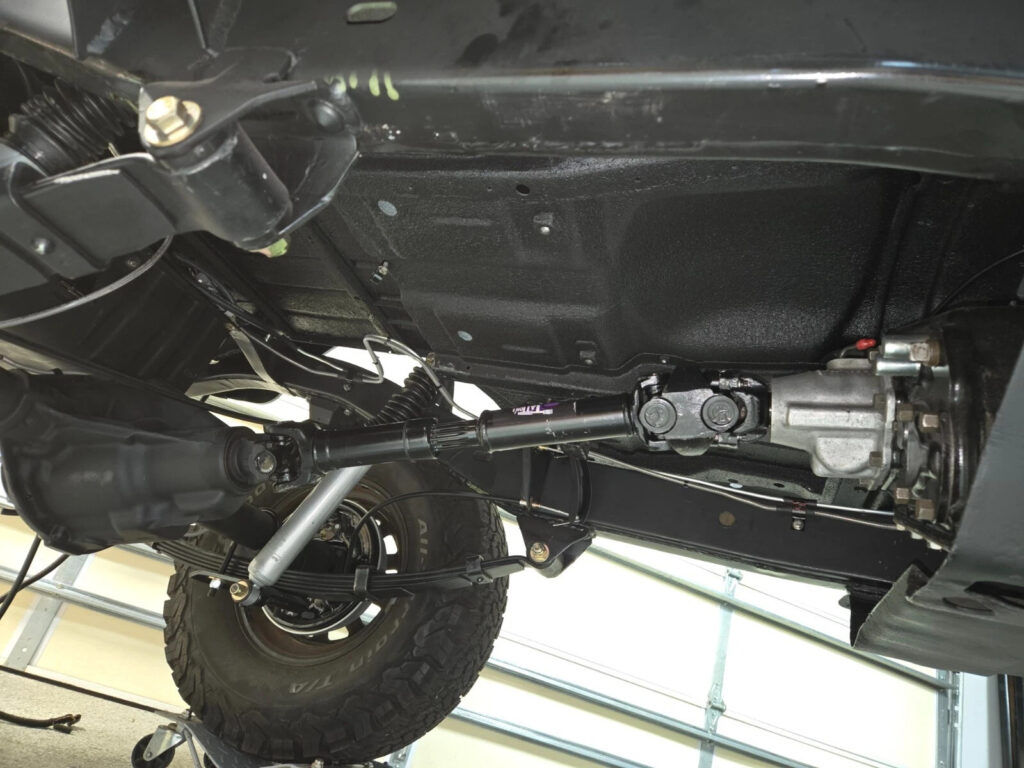

Driveshafts are new Tatton 2” Heavy Duty with life time warranty

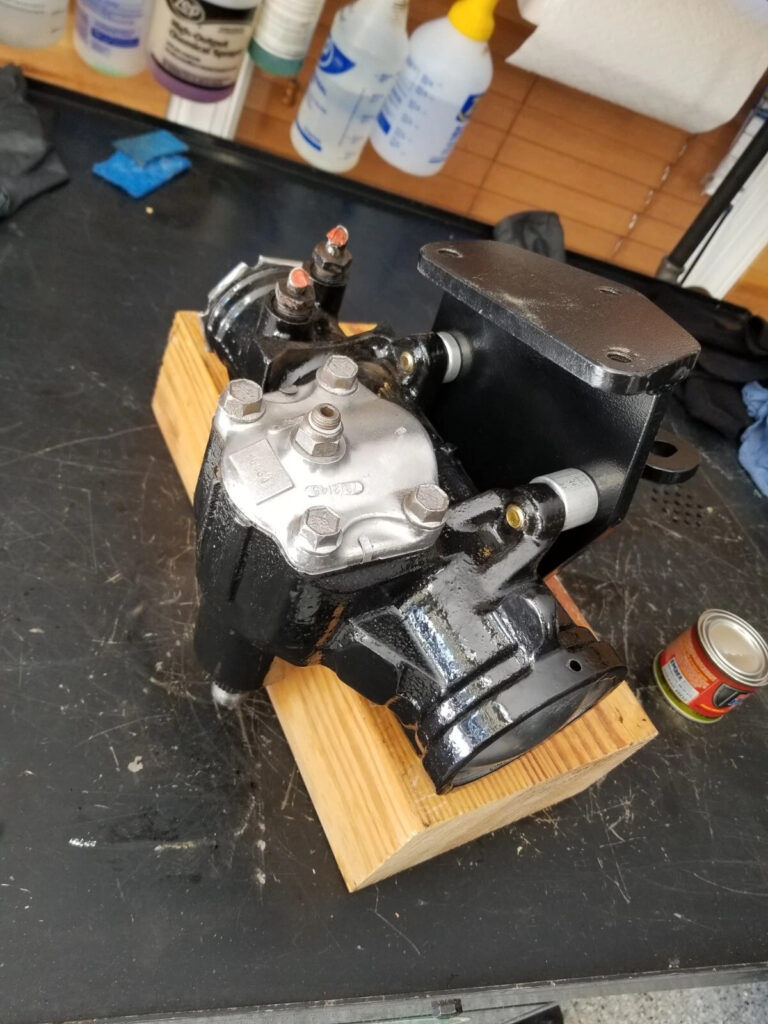

Steering column reconditioned with new turn signal switch, Tie rod and Drag Link are new heavy duty 1.25” thick with new joints and have been flipped to a top mount, new steering stabilizer, alignment done in 2025, heavy duty steering box bracket, new power steering lines
Tires are barely used 31×10.5 BF Goodrich all Terrain KO2’s with newer steel wheels
Brake system replaced with 5.0 brake fluid, new stainless steel lines, new booster and master cylinder, reconditioned pedal assembly, new parking brake cables,

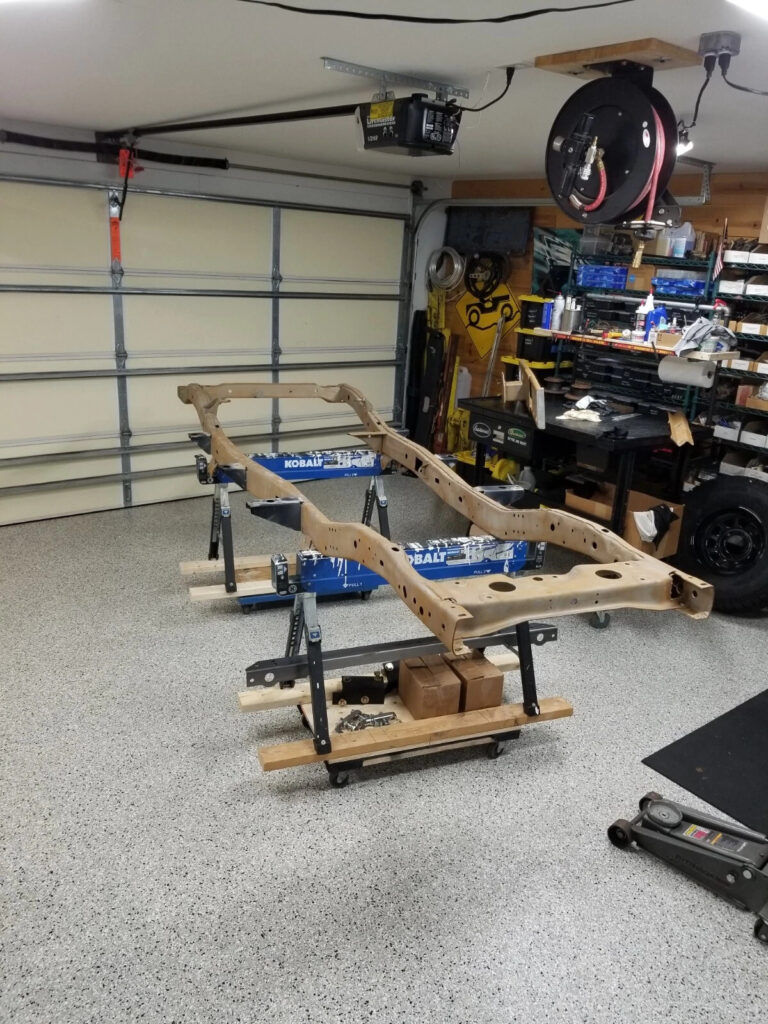

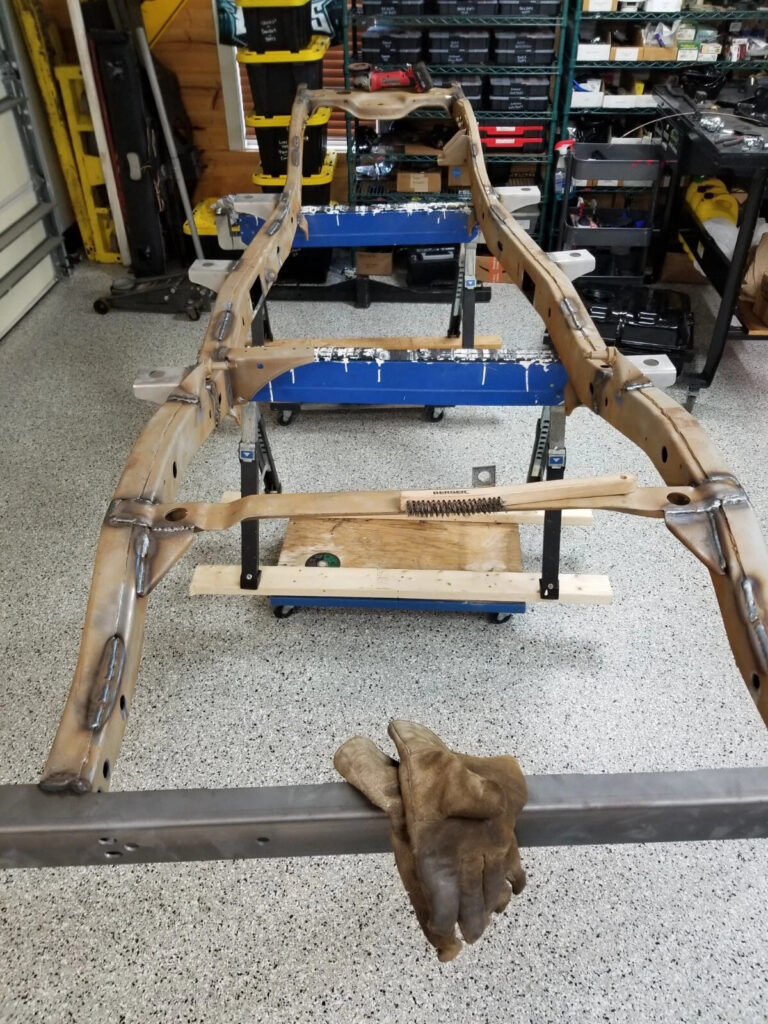

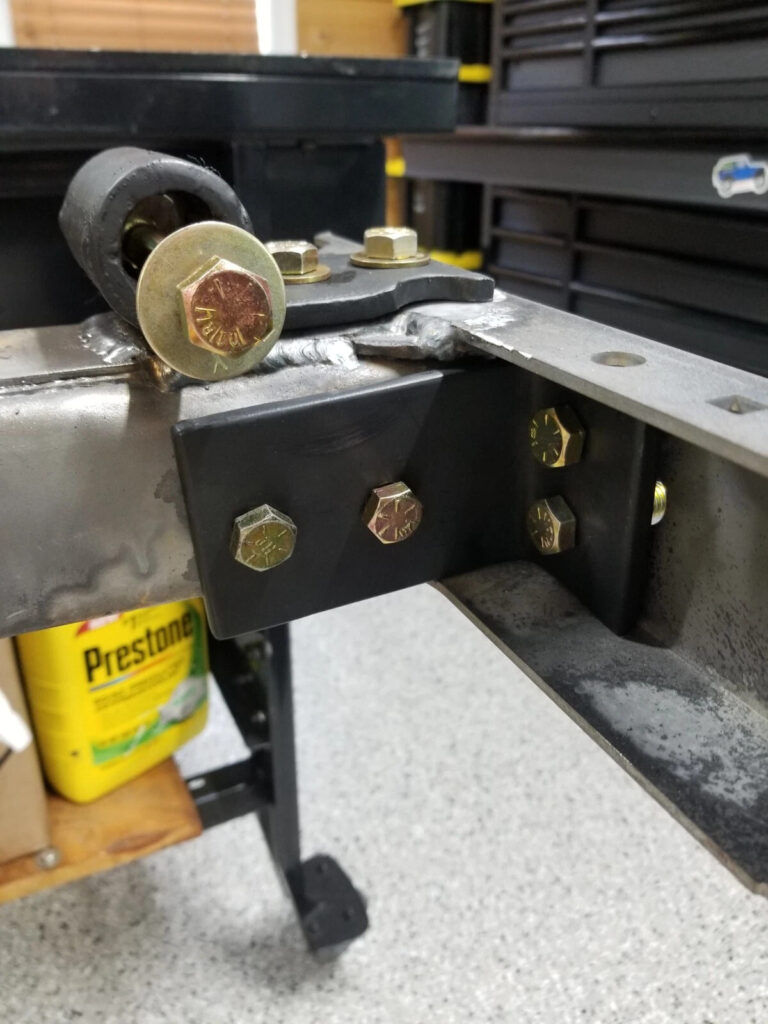

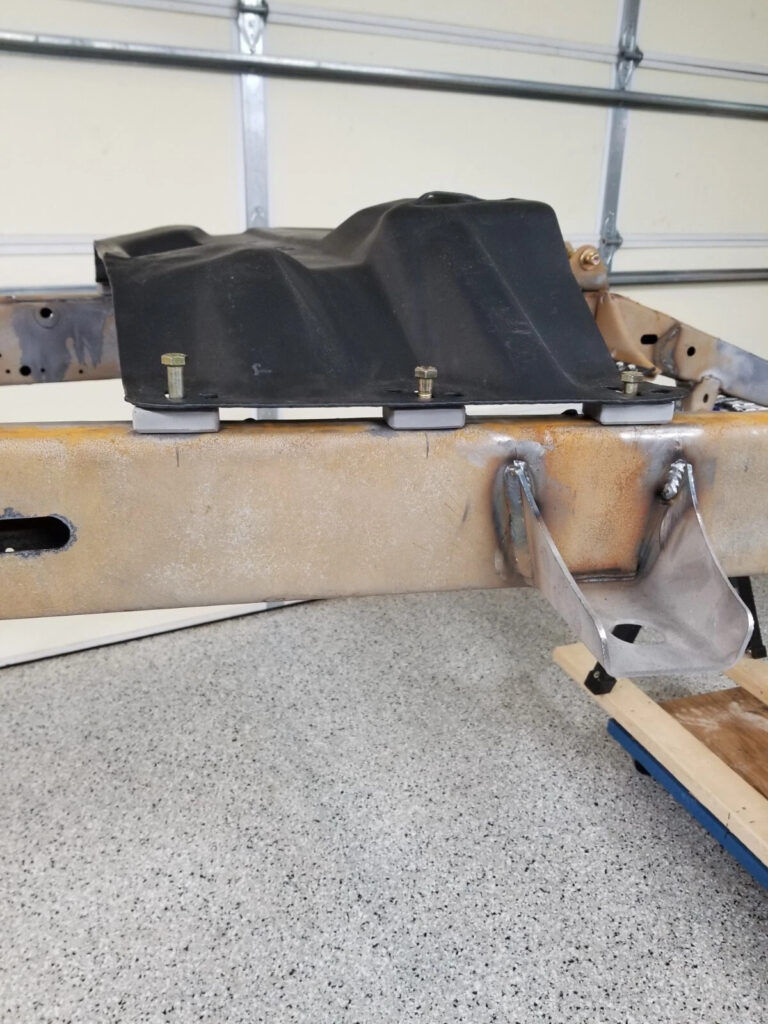

Frame has been sand blasted, painted with POR15, top coated flat black, 3 coats of Eastwood internal frame coating, NO rust, welded 1” drop for transmission skid plate, new rear cross member, new body mounts welded on, welded on frame ground peg from and rear, 2” receiver rear bumper, 4” tube custom front bumper, heavy duty tie in installed for rear bumper, DS and PS cupholders,
Tub is from a 1991 YJ and has been CJ converted including the windshield, epoxy primer (4 coats), Hot Rod Flatz Blood red paint (3 coats), NO rust, new 1” urethane body lift, interior and under is newly sprayed Raptor Liner, new windshield seals, new front seats, custom aluminum tunnel cover to adjust for lift, original Jeep tailgate, new custom but original look spare tire carrier, switched under dash LED lights

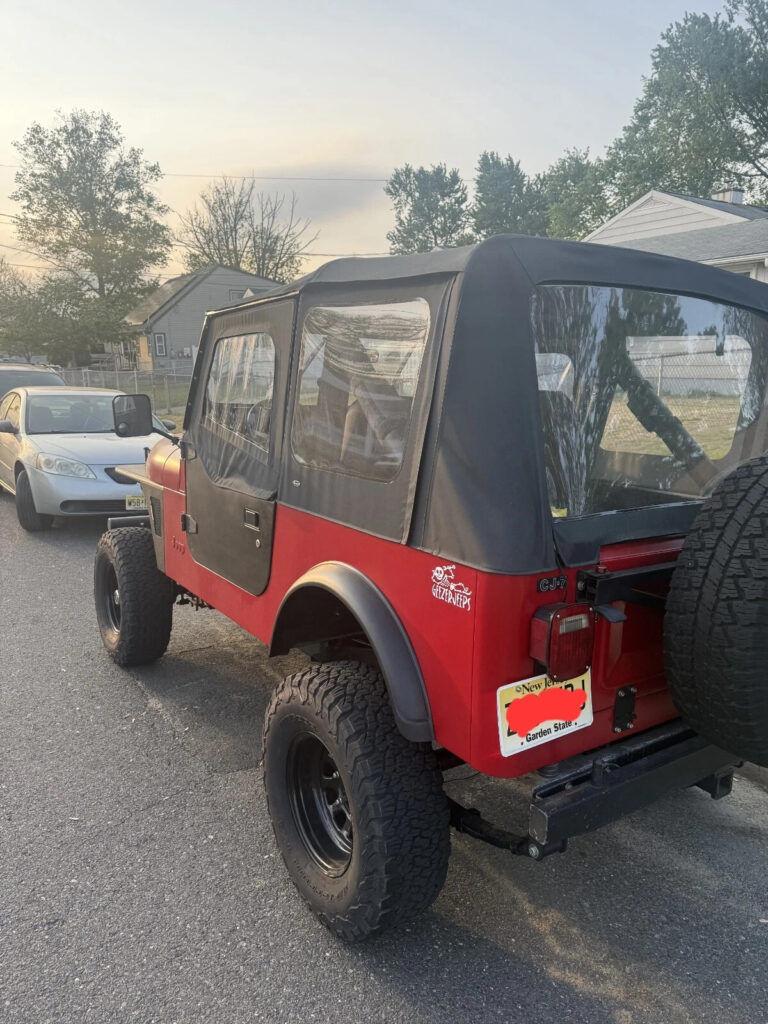

New Quadratec Soft Top, YJ half doors (lock rods have been removed but they are included)

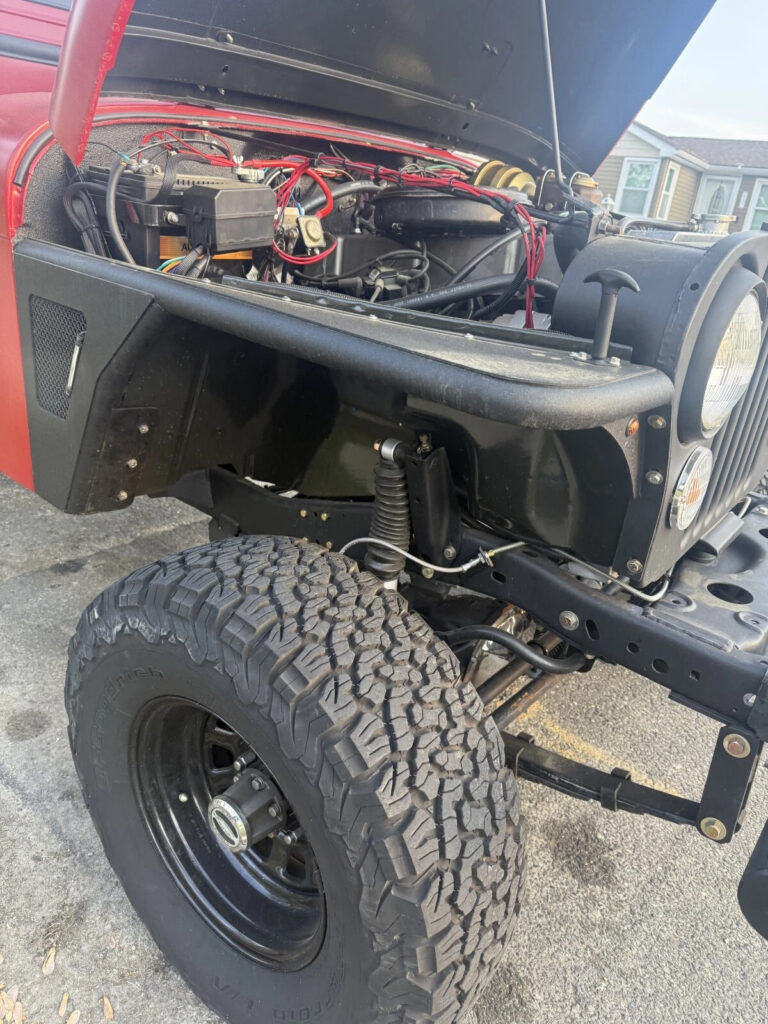

New tube fenders with inner wells, original grill and hood, no rust on windshield frame, all new seals.
New Rough Country 2.5” suspension lift ki #61030, 1” shackle lift, new Rough Country Shocks, all new DayStar polyurethane bushings.

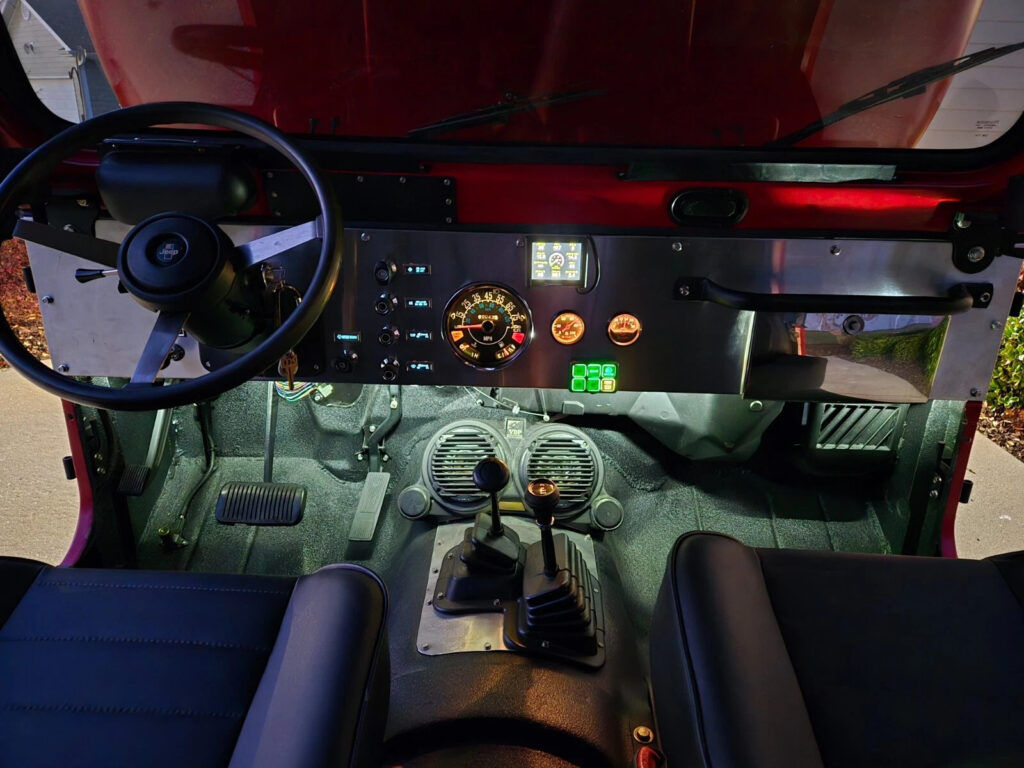

Painless Wire harness harness for engine and tub, new switch system which turns off when key is removed, added ground bars for all grounds on jeep, JL Audio MBT-RX Bluetooth adapter with 2 channel amplifier, 2 speaker pod on transmission tunnel attached to the amplifier, 2 other roll bar speaker pods ready for use, new battery
CJ7 rollbar with pad, rollbar has been sand blasted and painted with POR15 and top coated flat black
Stainless steel tailgate hinges, windshield hinges, hood hinges, dash, axles covers, hood latches
New heater fan, rebuilt HVAC system, new pull cables,
Nearly all nuts and bolts are new stainless steel or grade 8
ALSO INCLUDED:
Hard to find parts and extras in bins
Timing light
New tow bar with tow light kit
Manual/Binder made for this jeep to include sections to original service manuals
Photos of build from start to finish
Price: $20,000
